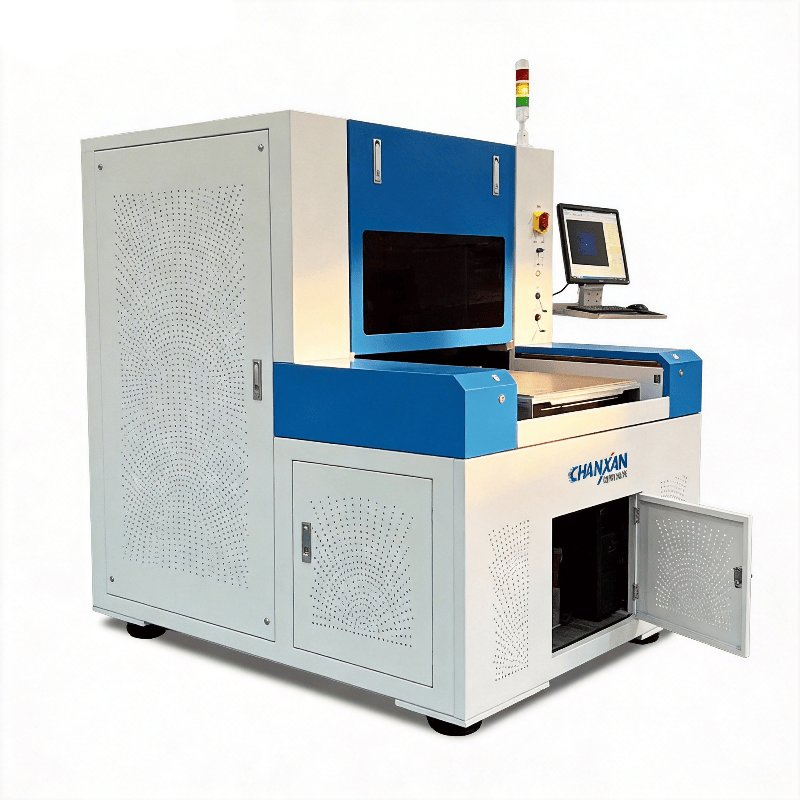

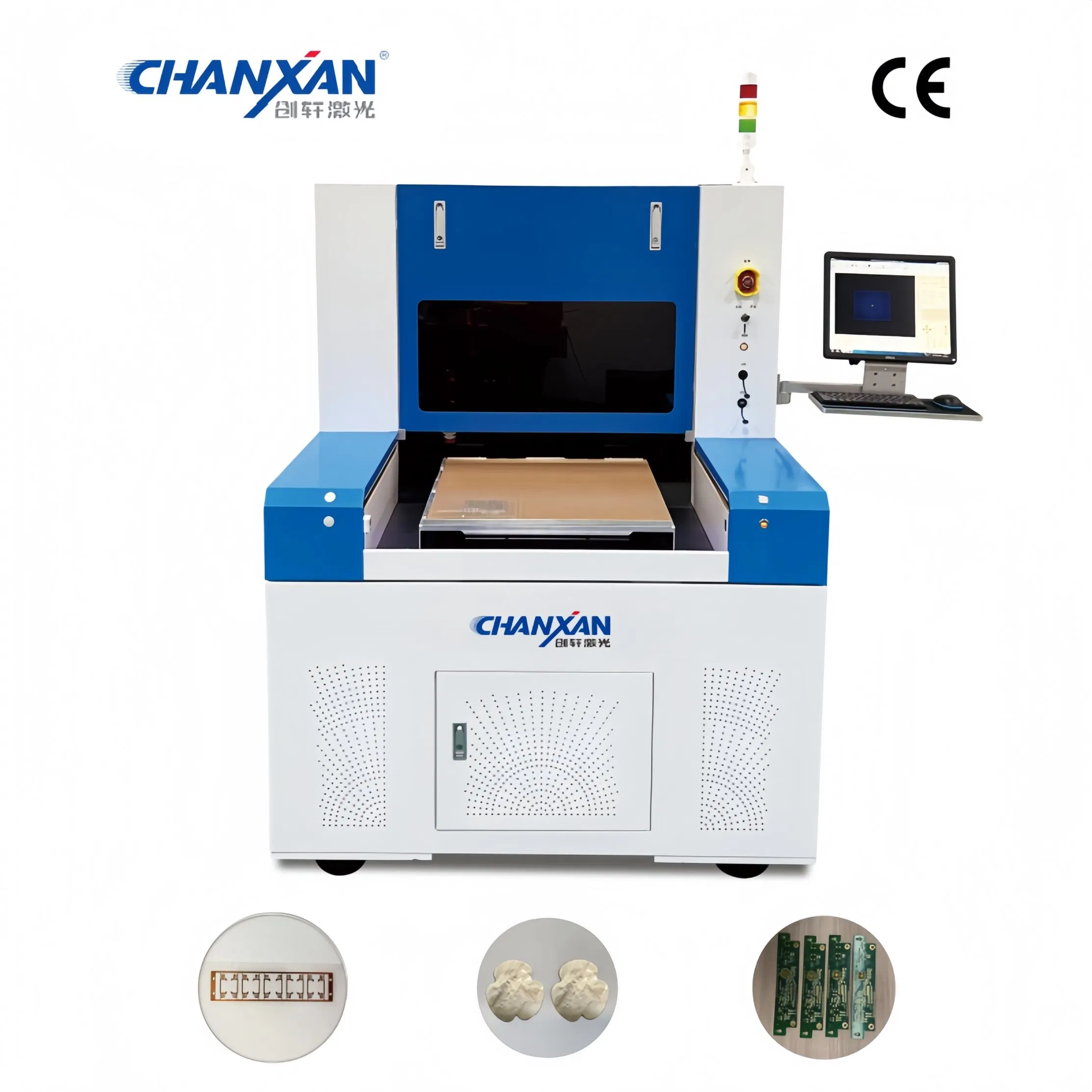

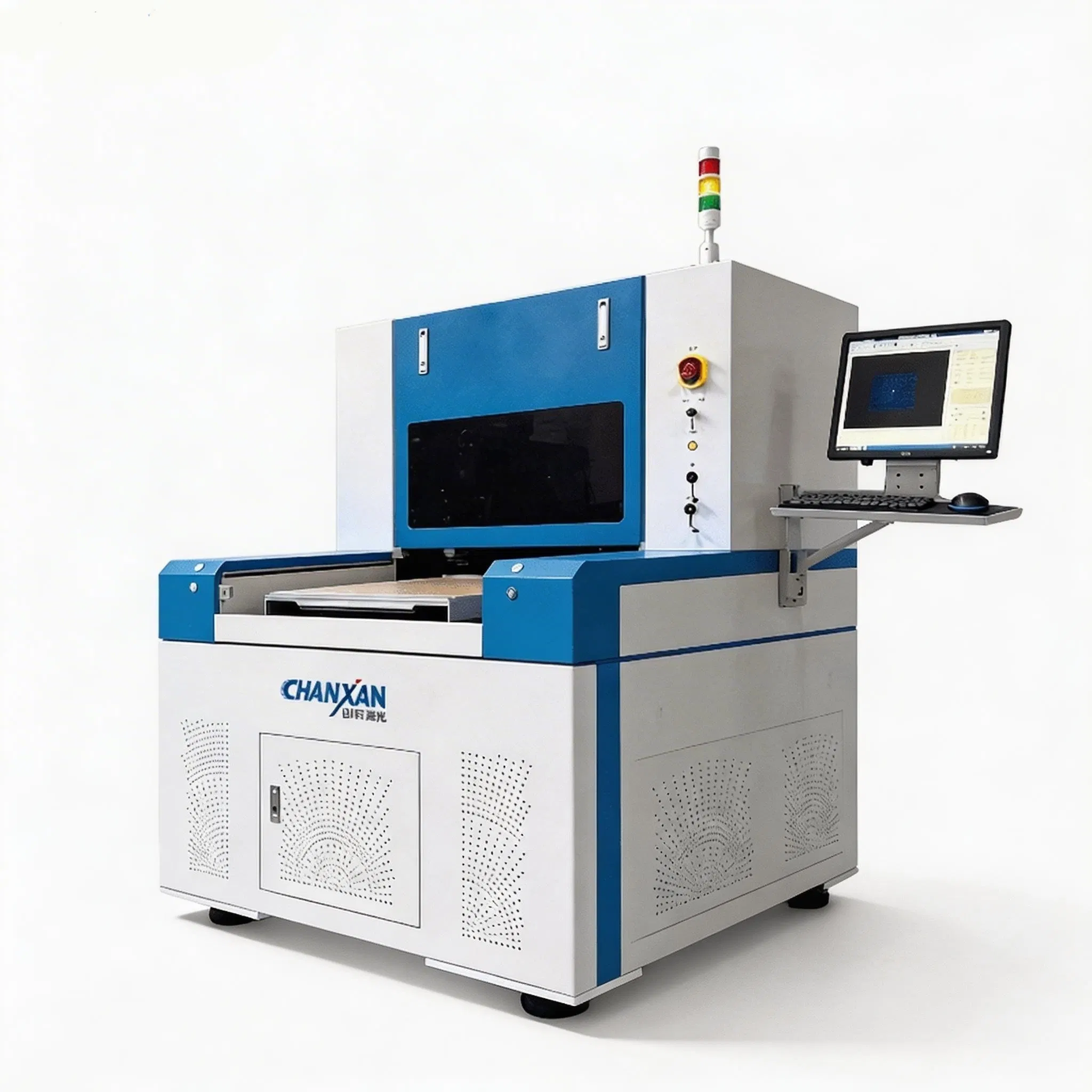

Ultra-Precise Picosecond China Laser Cutting Machine for Flexible Electronics
Product Description
Overview

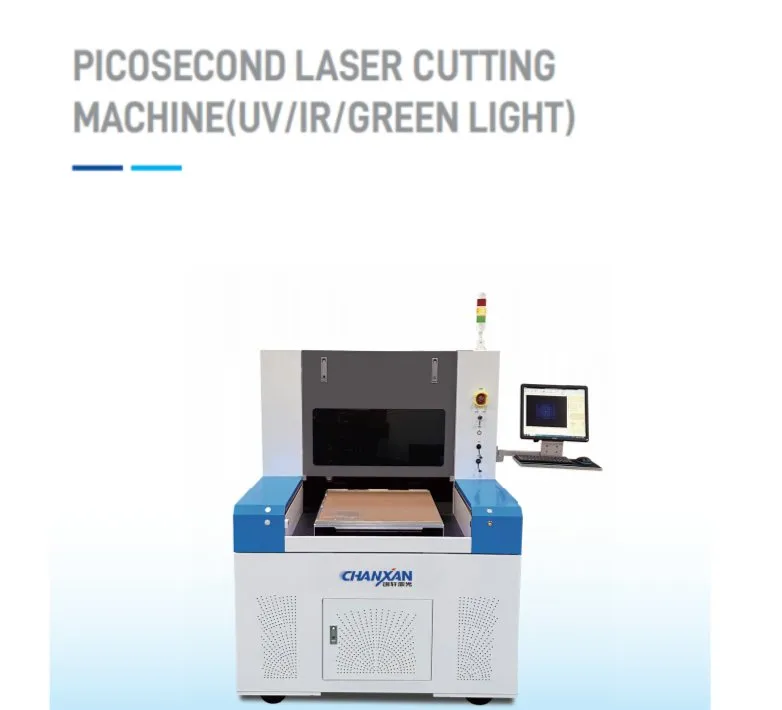

Picosecond Laser Cutting Machine (UV/IR/Green Light)
We provide comprehensive laser solutions for precision processing in the 3C industry, including core techniques such as FPC precision cutting, ultra thin PBC cutting, high resolution marking, plating removal, metal deep engraving and micro hole machining. Compared to traditional processing techniques, our laser solution comes with groundbreaking advantages: processing accuracy of ±5 micrometer, satisfying the miniaturization requirement of electronic components; non-contact processing that poses zero damage to the product; and flexible production without any need for molds, significantly reducing production cost.
Equipment Advantages
- Ultra-short pulse lasers that can achieve "cold" processing, featuring high-efficiency processing, minimal HAZ (Heat Affected Zone), and no need for following auxiliary processing.
- Equipped with linear motor driver system and marble platform to ensure precision and stability during high-speed processing.
- High resolution CCD automatic alignment, guaranteeing accurate positioning during cutting.
- High-quality laser emitter and optical system together with solid protection of the entire optical path to ensure long time stable function of the equipment.
Application Fields

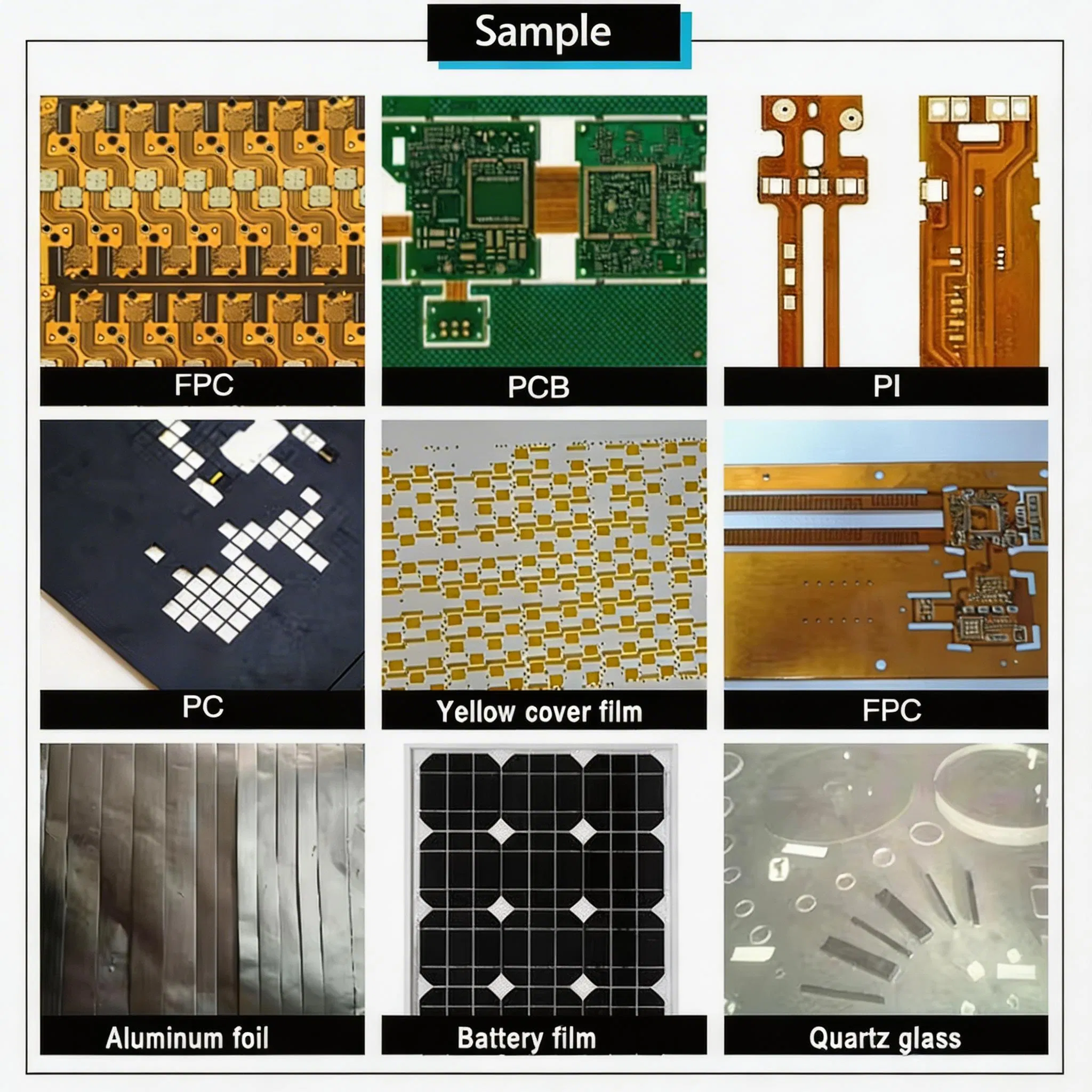

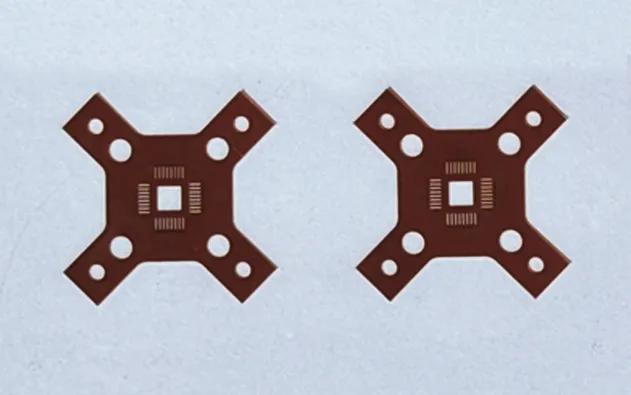

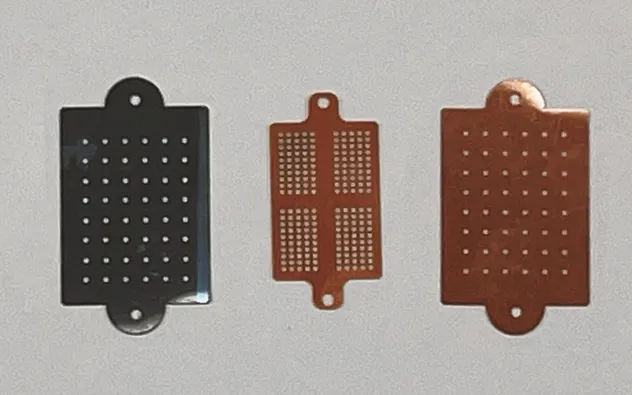

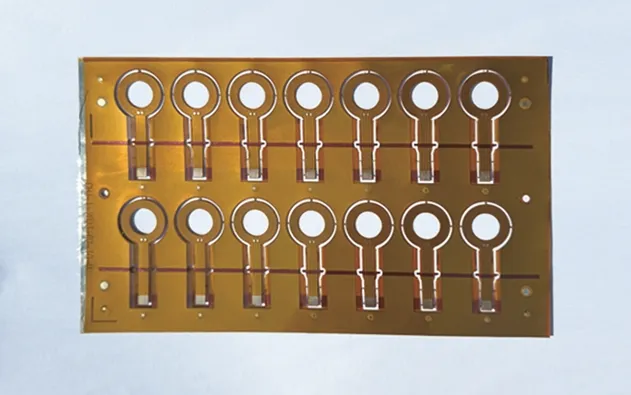

Widely deployed in multiple sectors, including mobile, communication, consumer electronics, semiconductors and biomedical. Suitable for precision laser cutting, drilling and etching on various foil and non-metal materials, e.g. flexible OLED, LCP, PI film, FPC, nanogold, polarizer and FPC cover films.
Compared with traditional techniques, which involves mechanical processing, the laser solutions provided come with significant advantages: faster cutting velocity, which grants a major increase in productivity.
Product Description

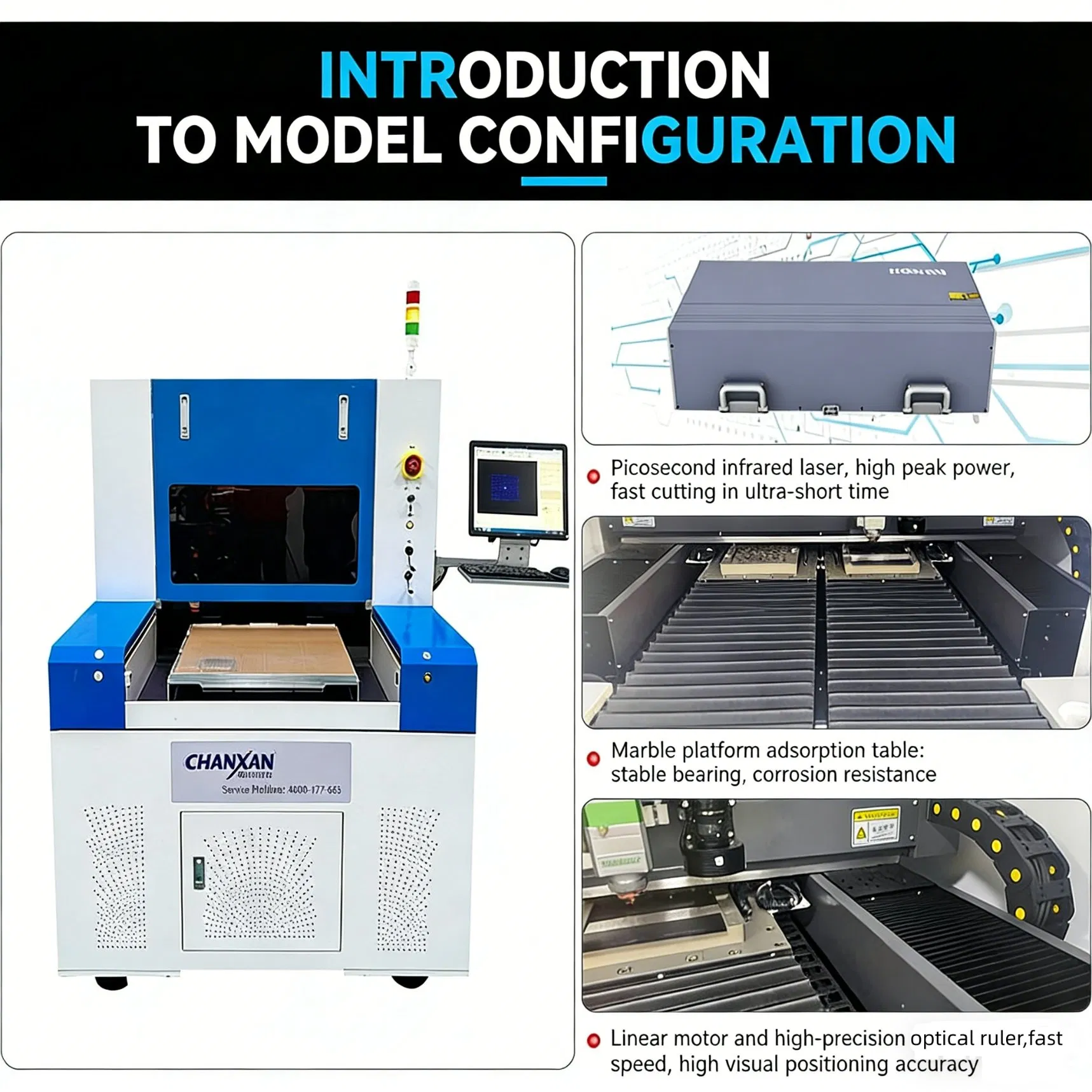

Key Configurations
- Features a marble platform X/Y system driven by linear motors, ensuring precision and stability during high-speed operation with no long-term wear and low maintenance costs.
- Configured with a high-pixel CCD automatic alignment function to guarantee precise product cutting alignment, enabling the processing of micro-sized cuts and complex irregular patterns.
- Optional extra-large field telecentric lens supports a maximum single processing area of 200×200mm, allowing large-area processing without the need for stitching.
Technical Specifications
With a focused spot size as small as a few microns, the machine achieves ±1μm positioning accuracy and 1μm repeatability. It excels in micro-cutting, drilling, and patterning tasks, meeting the strictest tolerances of 3C electronics, semiconductor, and aerospace industries.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Laser power | 10W/30W/35W | Dimensions | 2200*1500*1750mm |
| Working area | 500*610mm | Certification | CE |
| Positioning Accuracy | ±1um | Machinery Test Report | Provided |
| Processing speed | ≤3000mm/s | Video outgoing-inspection | Provided |
| Processing accuracy | ≤30um | Warranty of core components | 1 Year |
| Focus Spot | ≤20um | Applicable Industries | Solar panels |
| Scan range of galvanometer | 50*50um | Core Components | Picosecond/Nanosecond/UV |
| Model NO. | CS-0605-V-A | Cooling System | Water Cooling |
| Applicable Material | Nonmetal | Structure Type | Gantry Type |
| Laser Classification | Solid Laser | Laser Technology | Laser Flame Cutting |
| Laser Type | Ultrafast Laser | Processing Thickness | 3mm |
| Power Supply | AC 380V±10%, 50~60Hz | Transport Package | Wooden Case |
| Production Capacity | 100sets/Month | Application | Aerospace, Automotive, Semiconductors/3C/Glass/Biomedical |
Profile & Capabilities
- Founded in 2012 — Committed to developing industry-leading high-end laser systems.
- 150 National Patents — National high-tech enterprise actively participating in the formulation of industry standards.
- Elite Partnerships — Designated as a Gazelle Enterprise, Innovation-Based Enterprise, and trusted partner of Fortune Global 500 Enterprises.

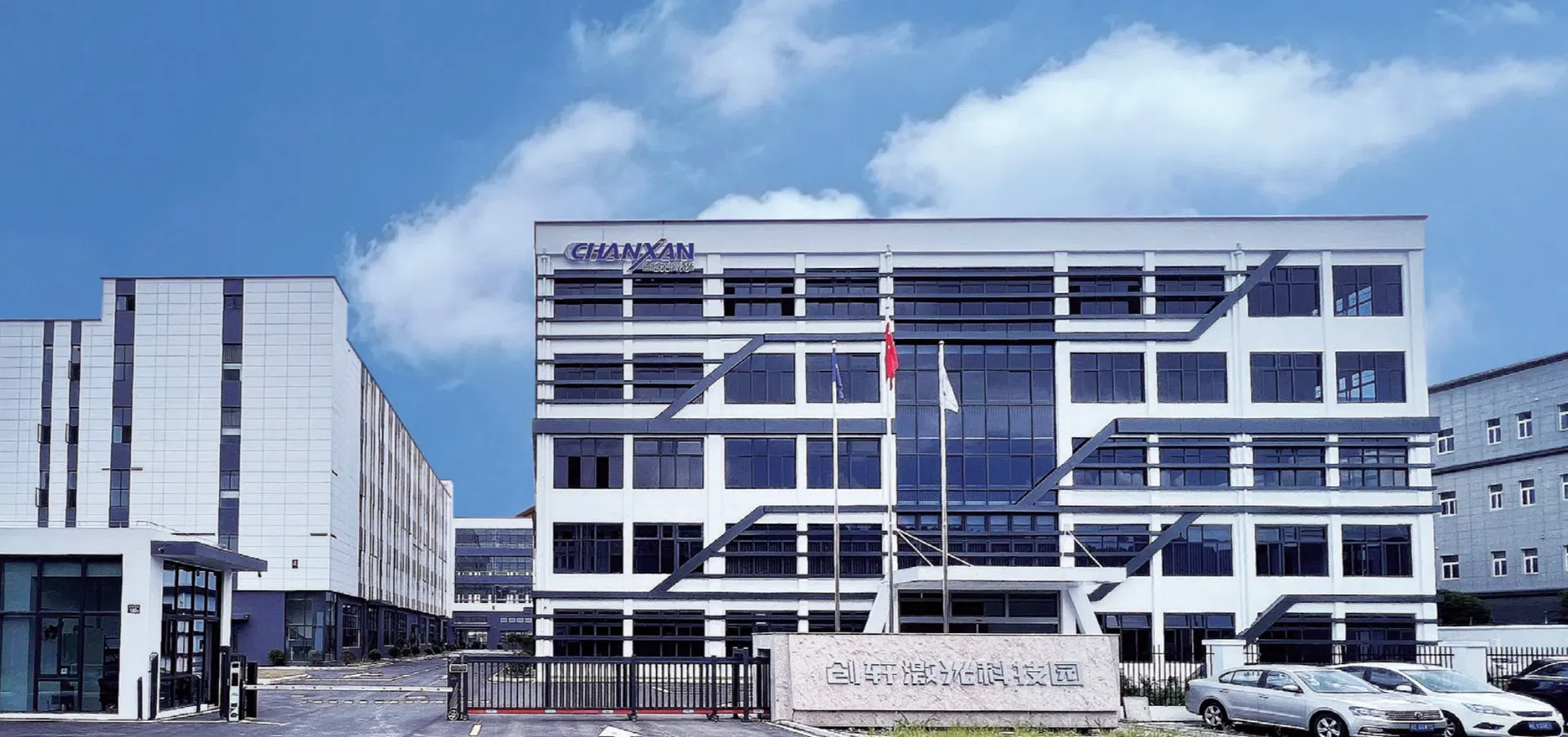

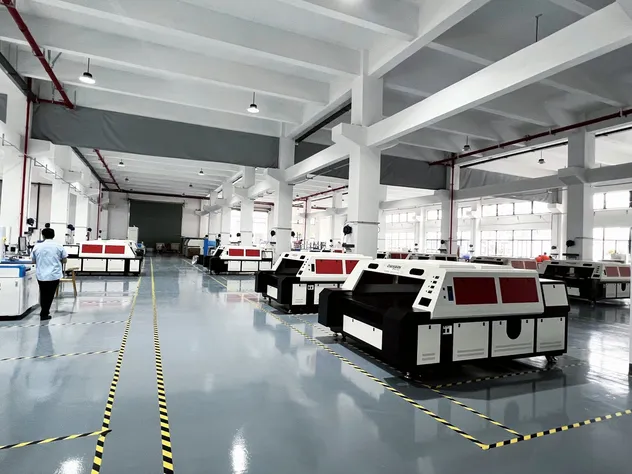

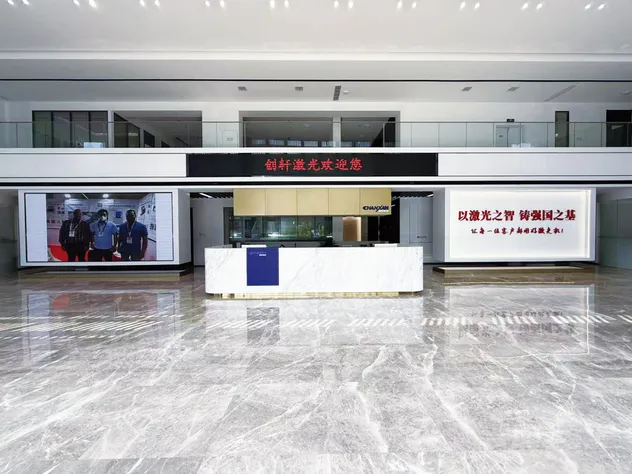

- Massive Production Scale — 80,000 square meters of production factories featuring five major R&D, production, and sales bases.
- Global Network — More than 100 offices and agents domestic and abroad offering localized support.
- Worldwide Presence — Products successfully distributed and operating in over 100 countries.
Why Choose Us?

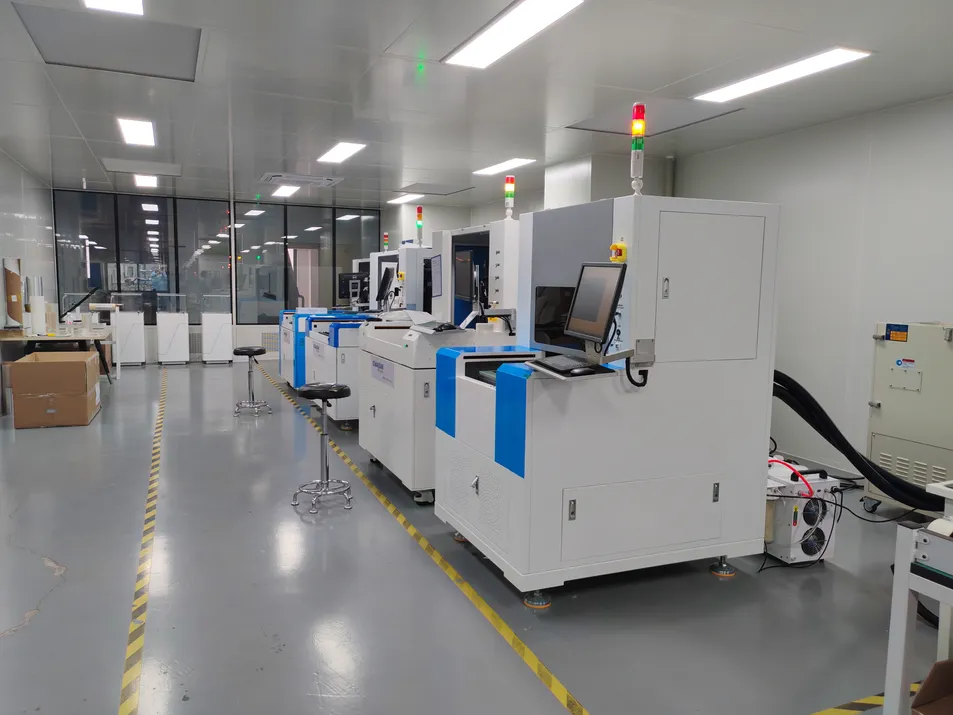

We have achieved full-process digitalization of after-sales service, providing customers with professional and efficient after-sales support via the Service Mobile intelligent management system. We are committed to the mission of "Make sure every customer use laser machines well" and helping them create greater benefits.
Service Commitment

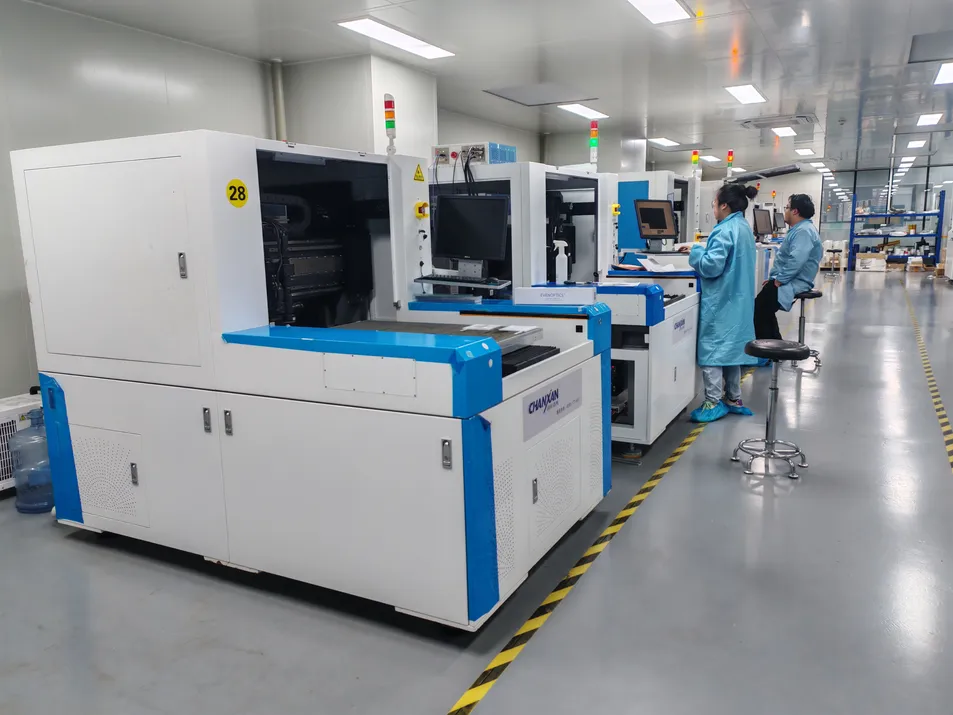

We strictly adhere to the ISO9001: 2015 international quality management system standard. With the spirit of striving for excellence, we are committed to manufacturing superior quality products for our customers. A toll-free service hotline is available for 24 hours, and a professional service team responds quickly 24 hours a day to effectively address issues.
Invention Patent & R&D Power
As a leader in the laser technology field, we have acquired 150 national patents and successfully established two independent brands. We have established a strict enterprise product quality standard system with comprehensive filing to the quality supervision department, and have deeply participated in the formulation of multiple industry standards as an industry pioneer.

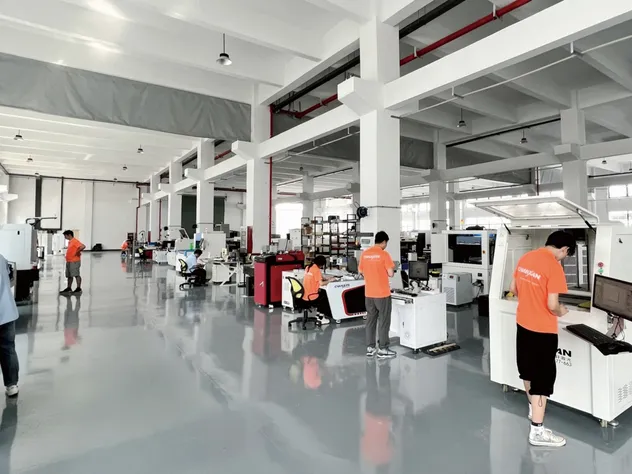

To strengthen our R&D and service capabilities, we have built a process R&D center equipped with dozens of advanced laser processing systems, providing both comprehensive laser processing value-added services and solid hardware support for continuous innovation.
Advantages of Cooperating with Us
- Stable & High-Precision Equipment: Utilizing advanced ultraviolet, picosecond and other laser technologies for higher processing accuracy and longer lifespan.
- Cost-Effective & Efficient Production: Low energy consumption, low maintenance costs, and high processing speeds to effectively shorten production cycles.
- Comprehensive After-Sales Service: On-site installation, commissioning, operator training, and timely technical support to ensure smooth operation.
- Strong R&D & Technical Support: Backed by a professional R&D team continuously upgrading technology and equipment functions.
Exhibition & Team Building
Our Exhibition
We showcase cutting-edge laser equipment, such as the UV picosecond laser cutting machine, to enhance brand visibility and reputation both domestically and internationally. We target potential clients from emerging markets and actively expand the global customer base.
Industry Communication & Exchange
Engage in in-depth exchanges with peers, industry experts, and research institutions to keep abreast of the latest trends in laser processing technology, market demands, and regulatory policies. We explore opportunities for technical cooperation and joint research to drive innovation.
Team Building Week & Employee Well-Being
We are committed to creating a healthy, safe, and harmonious working environment for employees, while also practicing the concept of green development and actively fulfilling social responsibilities.
Employee Well-Being Improvement: Optimize living conditions and steadily increase income levels; strengthen skills training to support employee career development.

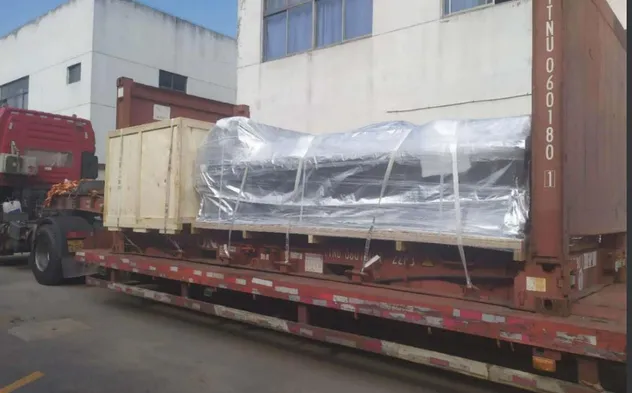

Packaging & Shipping
After Sales Service
- We provide comprehensive technical support, including remote video guidance and professional telephone consultation, along with e-commerce value-added services, to provide our customers with a more convenient experience.
- We promise a long-term and stable supply of genuine parts and high-quality consumables to ensure that the equipment is always in optimal operating condition.
Frequently Asked Questions
Q1:
What we can do for you?
A: We are committed to providing you with advanced equipment, technical solutions, and comprehensive service support to help you improve production efficiency, reduce costs, and optimize product quality.
Q2:
Are you a trade company or manufacturer?
A: We are a manufacturer with independent research and development capabilities and manufacturing capabilities.
Q3:
What is your delivery date?
A: About 35 days after receipt of payment.
Q4:
Can we be your agent?
A: We warmly welcome global agents to cooperate with us. We will provide full support for agents to expand the market, including professional solutions for machine technical issues and comprehensive after-sales service. In addition, our agents can enjoy favorable discount policies and attractive commission returns.
Q5:
What is the after-sales service?
A: We offer a one-year warranty and lifetime service for the products. During the warranty period, if the equipment malfunctions or components are damaged (excluding human factors and force majeure), the supplier will be responsible for free repair. The replacement parts required will be provided free of charge by the supplier (excluding consumables). After the warranty period, we will provide multiple support methods to ensure the normal operation of the system.
Q6:
What materials can your laser cutting machine process?
A: The machine is suitable for cutting and drilling nonmetal materials, including flexible OLED, LCP, PI film, cover film, FPC, PCB, nanogold, polarizer, and various thin foils.
