4228/5133 CNC Jumbo Automatic Float Glass Cutting Machine Processing Small Picosecond Laser Tempered Laminated Cut Robot Edge Loading Machine
Product Description
⚙️ Basic Specifications
Model NO.
ZK-4428
Power Supply
380/400/220V
Max Cutting Size
4200 × 2800mm
Glass Thickness
3~19mm
Linear Accuracy
± 0.15mm
Abnormity Accuracy
± 0.20mm
Cutting Speed
0-180m/Min
Conveying Speed
0-25m/Min
External Dimension
5000×3300×1500mm
Equipment Weight
2600kg
Total Power
8kw
Max Loading Size
4200 × 2800mm
💎 Product Description

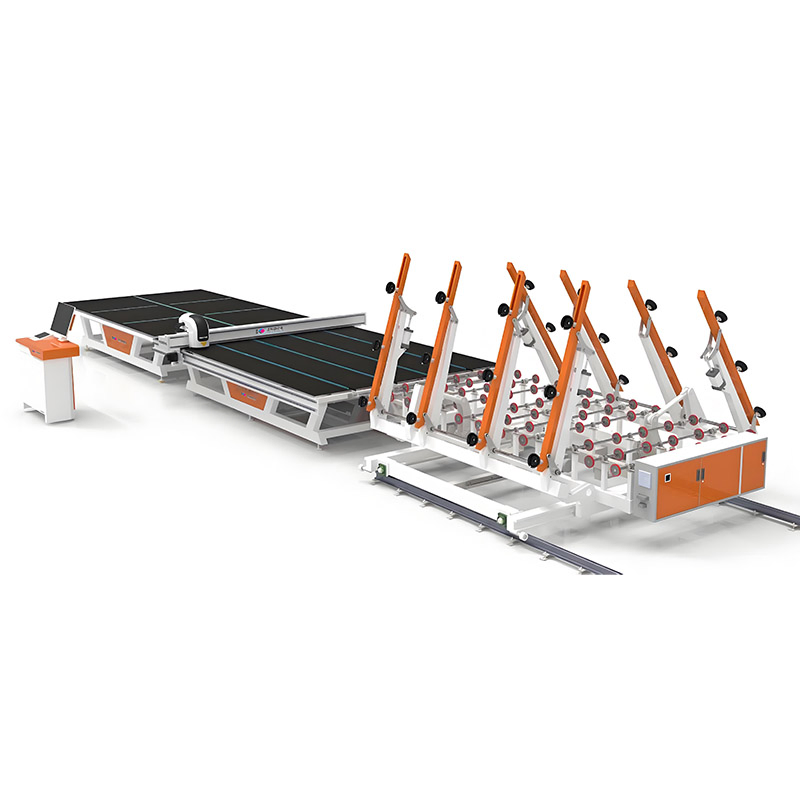

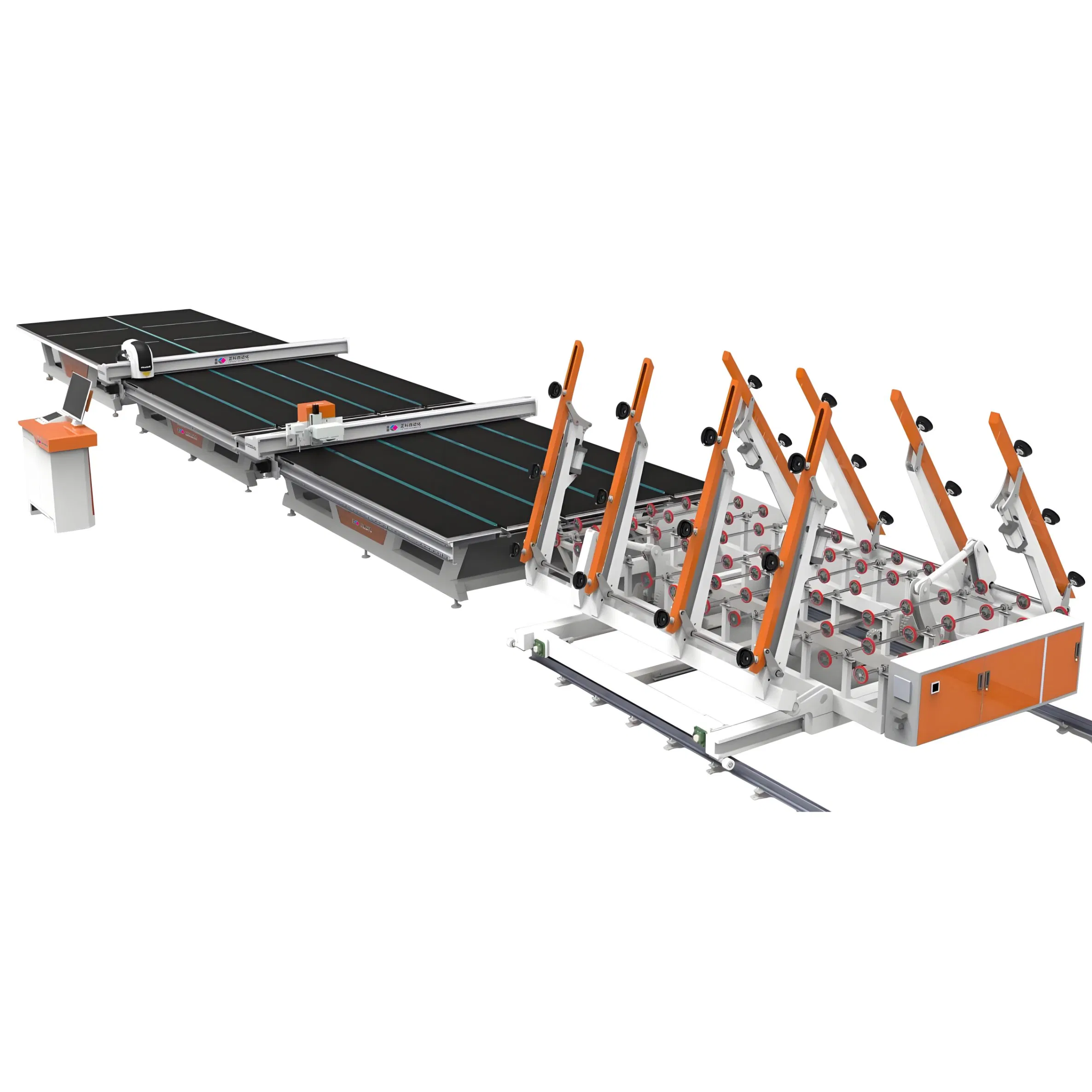

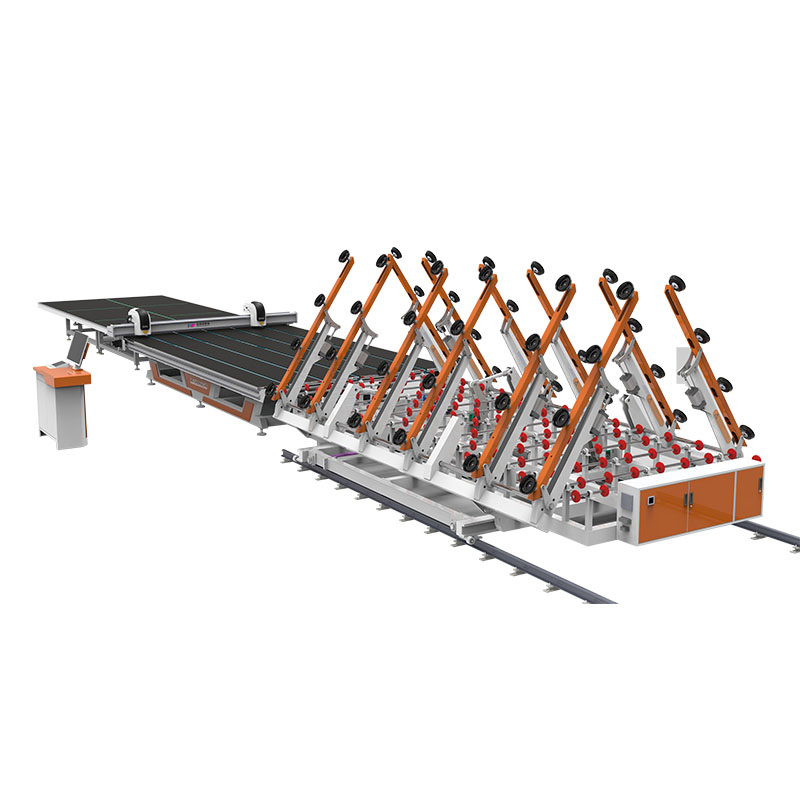

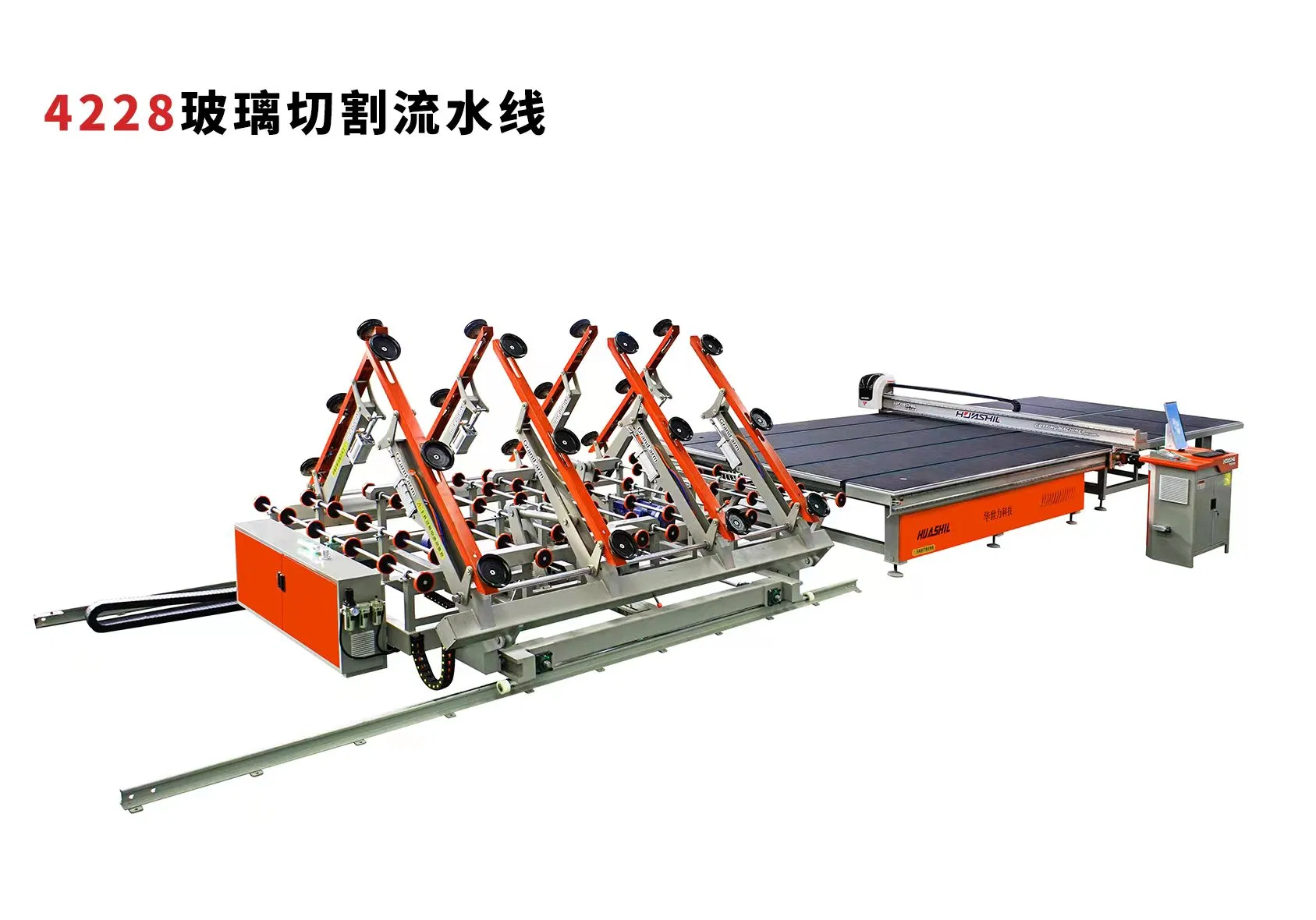

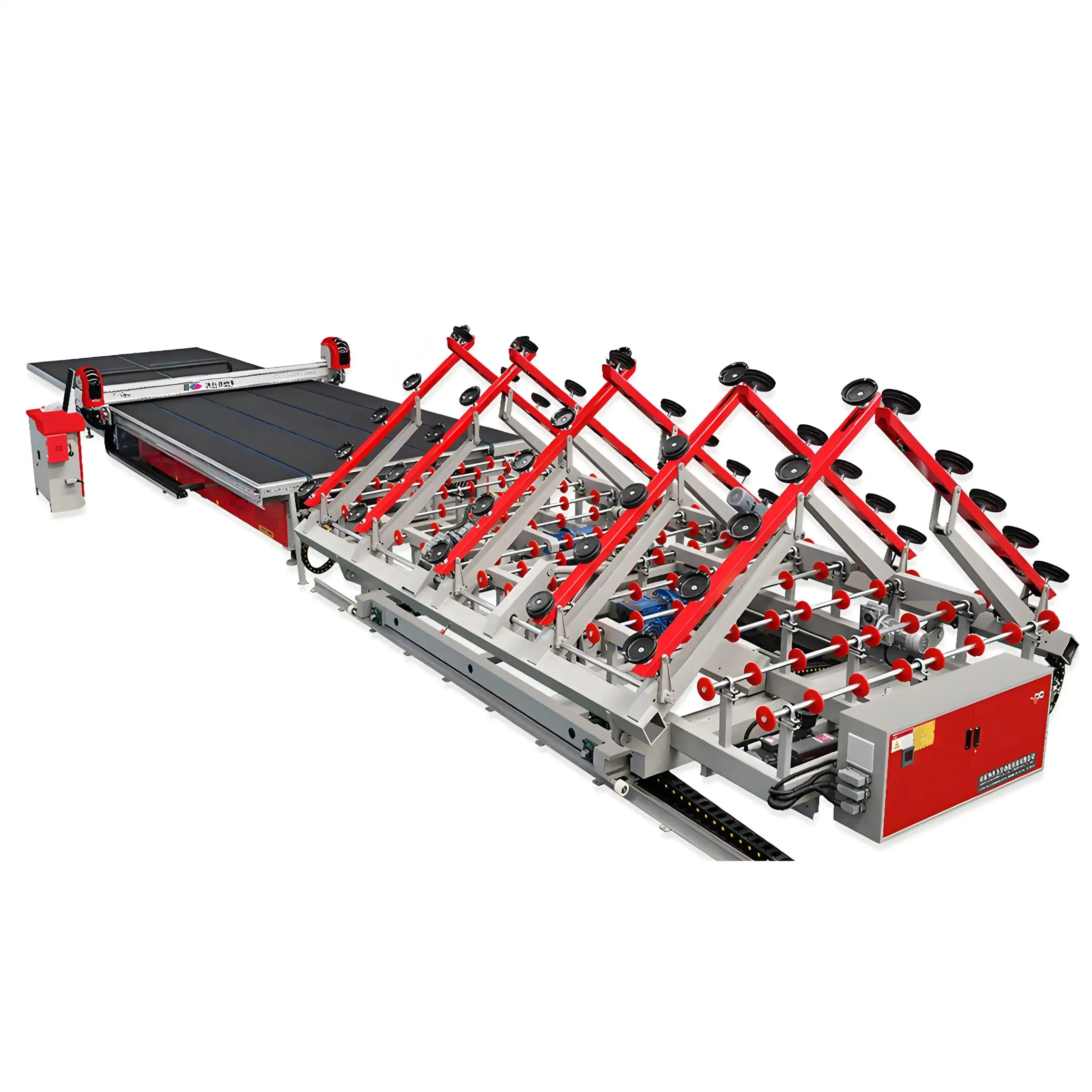

The intelligent glass cutting assembly line consists of three major systems: the loading table, cutting table, and breaking table. This automated process performs accurate picking, cutting, and air-floating breaking. It is ideal for straight and irregular cutting of flat glass for construction, decoration, home appliances, and mirrors.
-
🤖Automatic Loading Telescopic and big arms extend simultaneously to find and suction glass automatically, placing it securely on the table.
-
🧠Intelligent Control One-button operation manages loading, cutting, and labeling in a single cycle.
-
⚡Precision Cutting Optimization rate up to 99% using advanced software for high speed and accuracy.
-
🏷️Automatic Labeling High-speed, stable labeling follows the cutting head for improved workflow.
-
🛠️Fault Detection Real-time uploading of fault causes with an automatic alarm system for quick resolution.
📊 Model Comparison

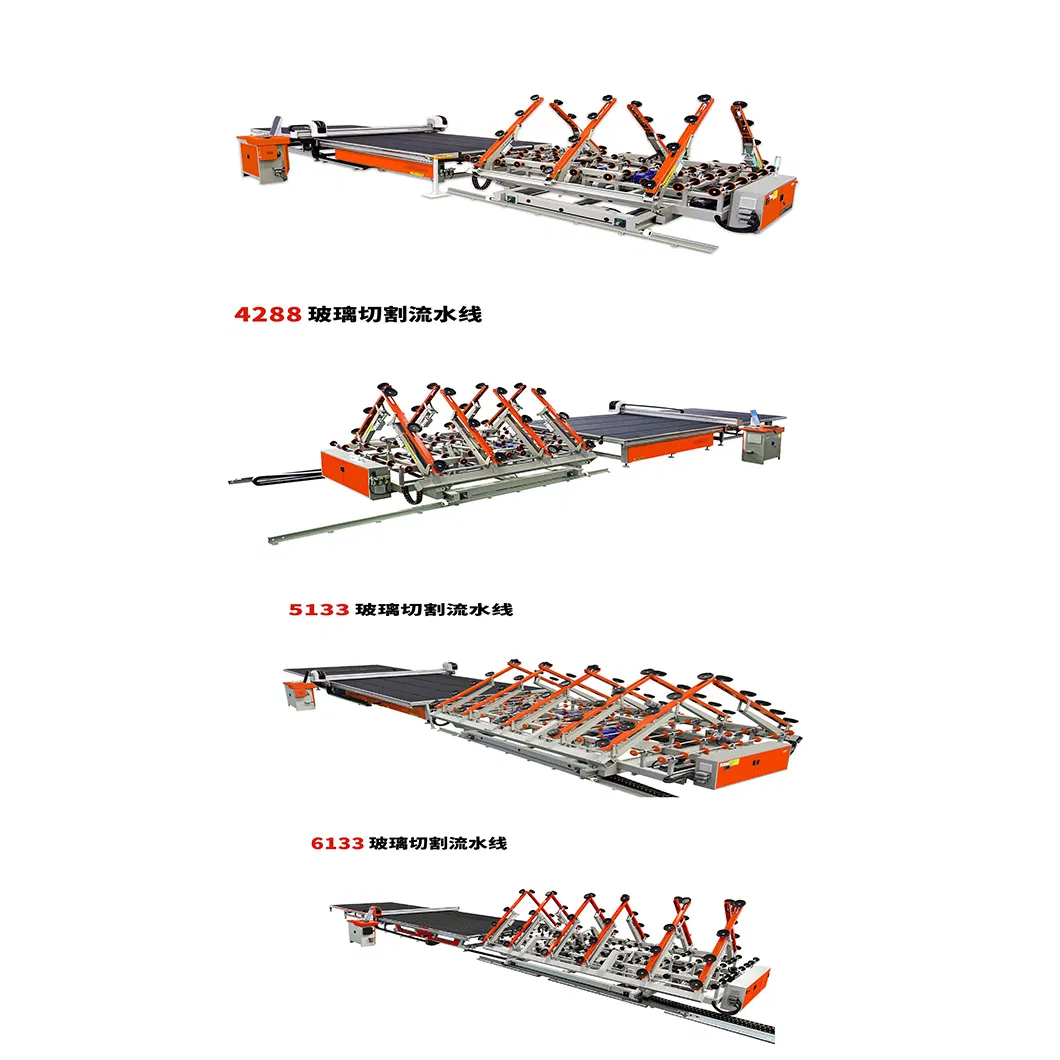

| Model | Max Glass Size | Min Glass Size | Thickness | Dimensions (L*W*H) | Total Power | Air Pressure |
|---|---|---|---|---|---|---|
| 3829 | 3660*2800mm | 50*50mm | 3-19mm | 12700*3800*2400 | 21.75kW | 0.6-0.8Mpa |
| 4228 | 4220*2800mm | 50*50mm | 3-19mm | 13900*3800*2400 | 22kW | 0.6-0.8Mpa |
| 5133 | 5100*3300mm | 50*50mm | 3-19mm | 17100*4450*2400 | 30kW | 0.6-0.8Mpa |
| 6133 | 6100*3300mm | 50*50mm | 3-19mm | 20140*3900*2400 | 34kW | 0.6-0.8Mpa |
🔍 Technical Details

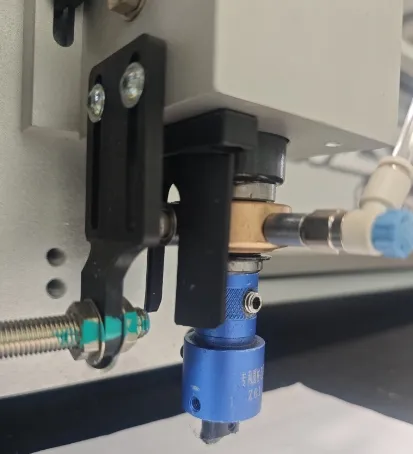

Cutting Tech & Oil Supply
Features an electromechanical precision pressure valve. The uniform cylinder pressure ensures the cutting head fits the glass surface perfectly, preventing defects. Automatic pneumatic oil supply moves synchronously with the head via PLC control.

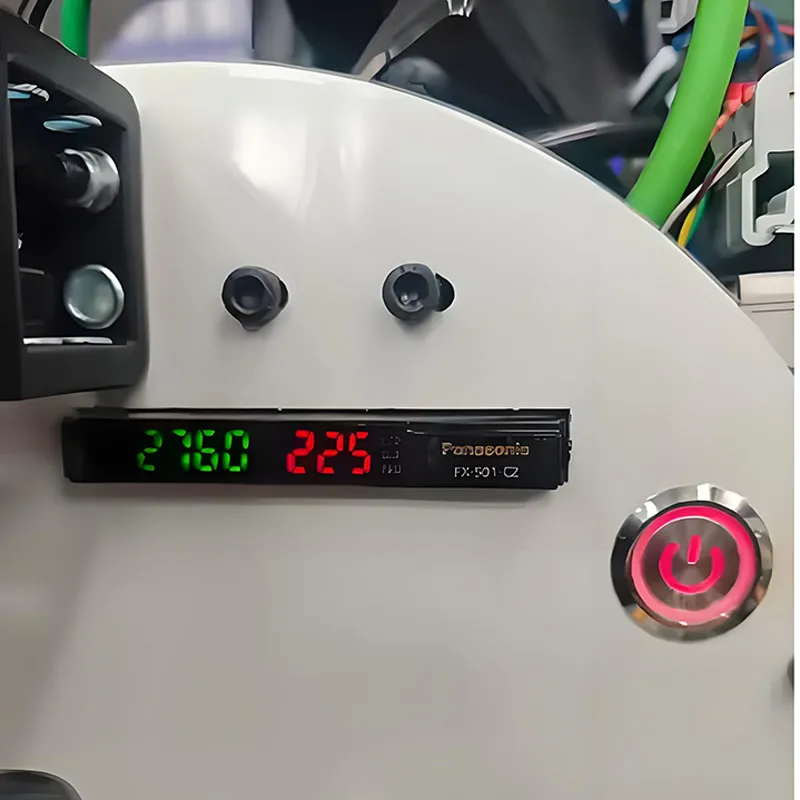

Intelligent Edge Finding

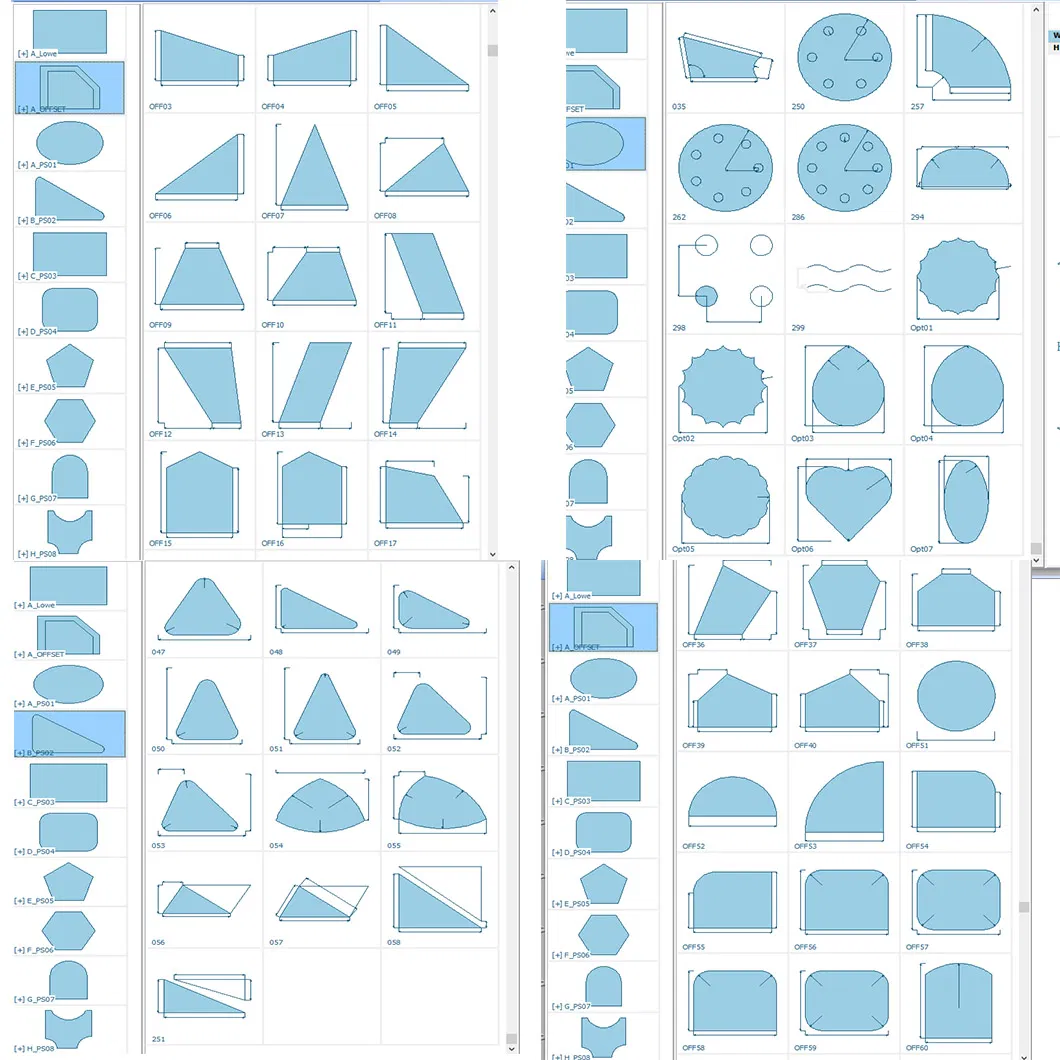

Accurately detects the position and deflection angle of the glass. The system automatically adjusts the cutting path. Includes special-shaped scanning to generate graphics from various template materials.
Auto Rail Lubrication

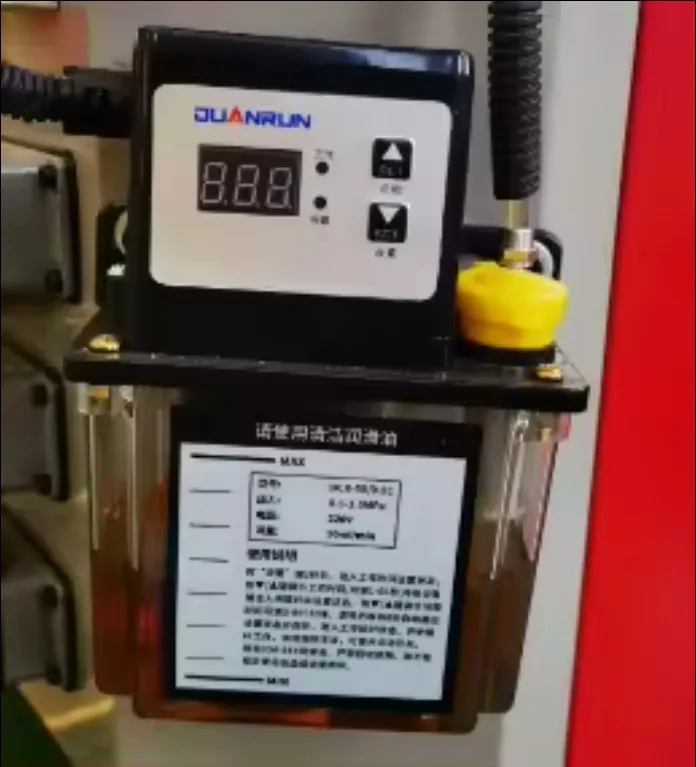

Ensures stability and reliability with reduced manual intervention. Operators can set reminders; a simple 10-second button press completes the oil filling operation.
🖼️ Visual Displays
🌟 Key Advantages
- ✅ Professional glass production solutions.
- ✅ 24-hour professional online service team.
- ✅ OEM & ODM customized design, logo, and branding.
- ✅ Strict quality testing and advanced production equipment.
- ✅ Competitive pricing directly from the manufacturer.
❓ FAQ
What is the cutting accuracy of the machine?
The linear accuracy of the glass cutting is ± 0.15mm, and for irregular shapes, the accuracy is ± 0.20mm.
What range of glass thickness can be processed?
The machine is designed to handle glass thicknesses ranging from 3mm to 19mm.
Does the machine support irregular shape cutting?
Yes, it includes intelligent special-shaped scanning and edge-finding positioning to handle complex geometries accurately.
What software is compatible with this cutting line?
The system is compatible with standard G-code from Italian OPTIMA optimization software and domestic Guiyou software.
Is the loading process automated?
Yes, the machine features an automatic loading system with telescopic arms that find and place the glass on the table automatically.
How does the lubrication system work?
It uses an automatic rail lubrication system that can be set with reminders to ensure smooth operation with minimal manual intervention.
